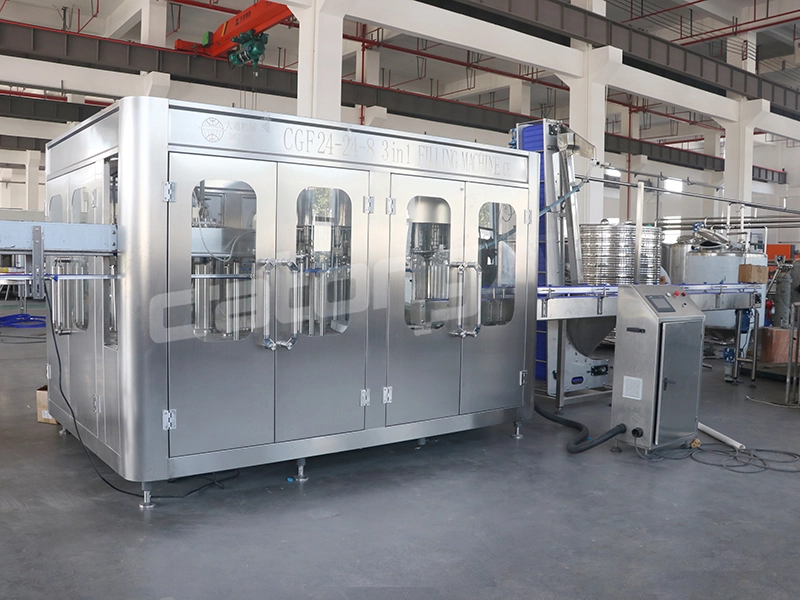

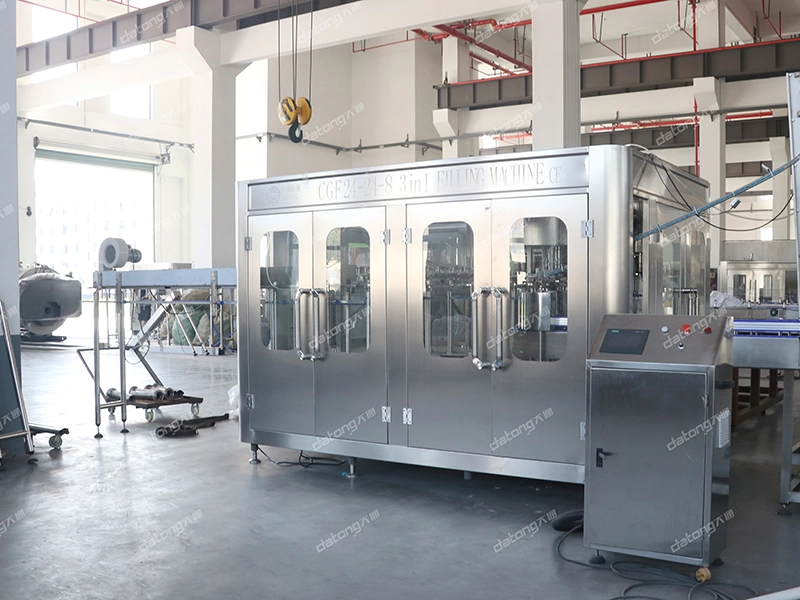

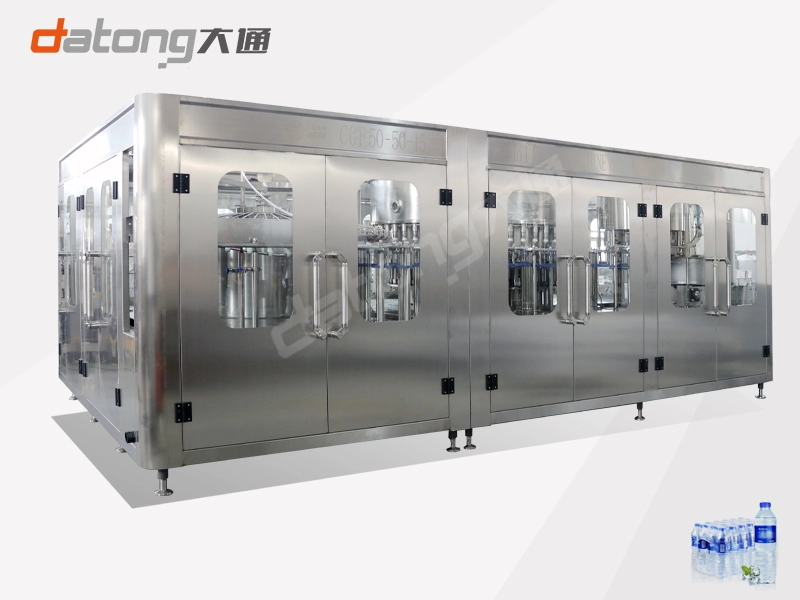

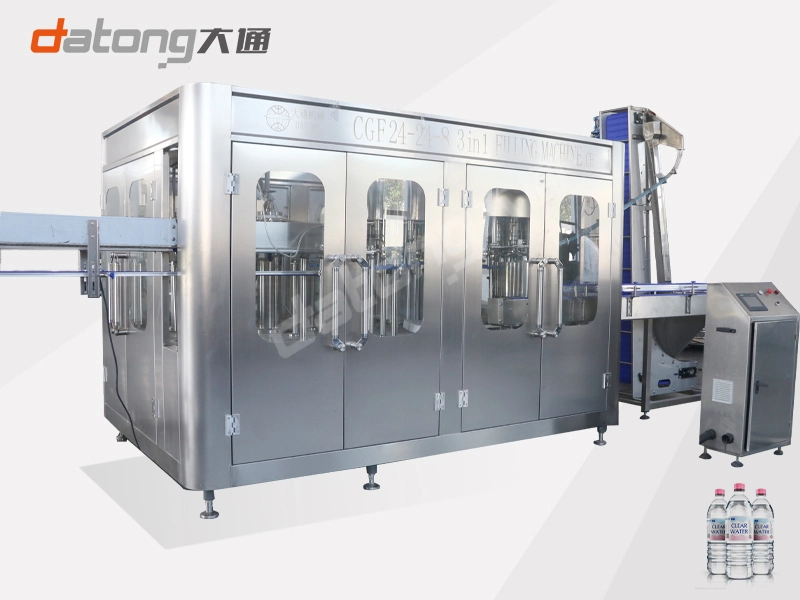

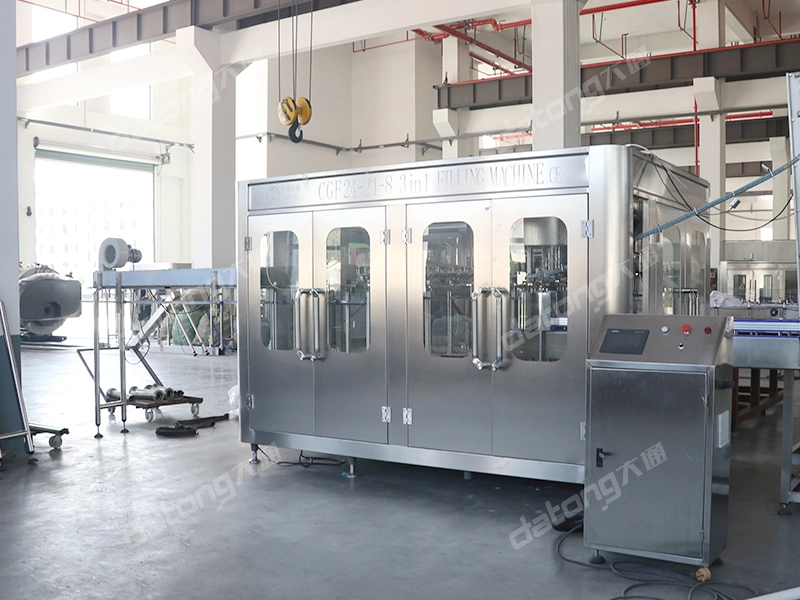

This water production line with a production capacity of 10000BPH integrates the functions of bottle washing, filling and capping. Stable performance, safe and reliable. In terms of design, the layout of the production line is compact and reasonable, which greatly saves space. The control system is comprehensive and complete, operators can easily get started, greatly improving production efficiency, the overall degree of automation The production line adopts high-precision, high-speed quantitative filling technology, which can accurately control the liquid level, prevent liquid loss, and ensure that each bottle of product has excellent filling.
1. Adopt food grade SUS304 stainless steel material, compact structure, reasonable design, small footprint, production capacity from 2000-36000b/h all can be customized;
2. PLC control, touch screen human-computer interaction interface, easy to operate, easy to maintain; The whole line output can be adjusted and has good compatibility and expansibility.

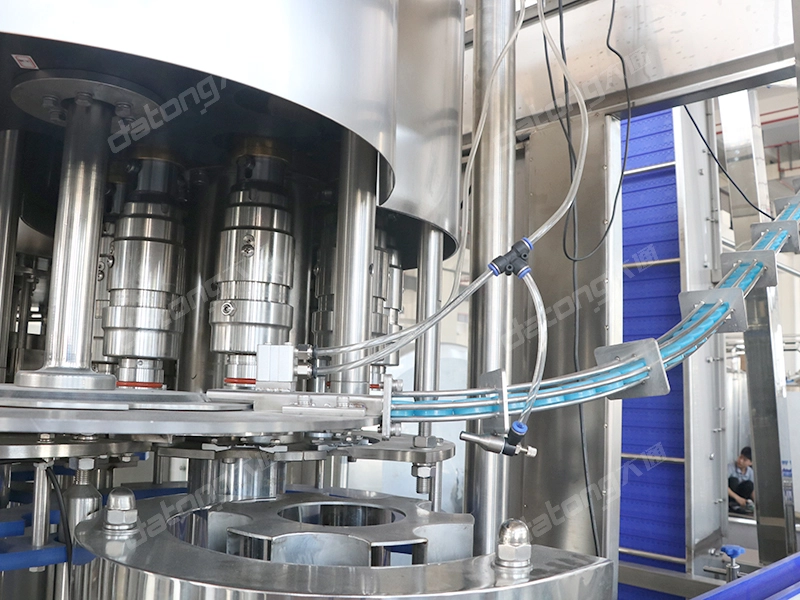

3. Perfect to meet customer needs, has small investment, quick results! It is small and medium-sized bottled water manufacturers ideal production and processing equipment！It adopts technology of air conveyor direct connect with bottle infeed starwheel to instead of screw and conveyor. It is easier and more simple to change over bottle size. Adopt neck handling technology to convey bottles. There is no need to adjust the height of equipment and only need to change some spare parts.

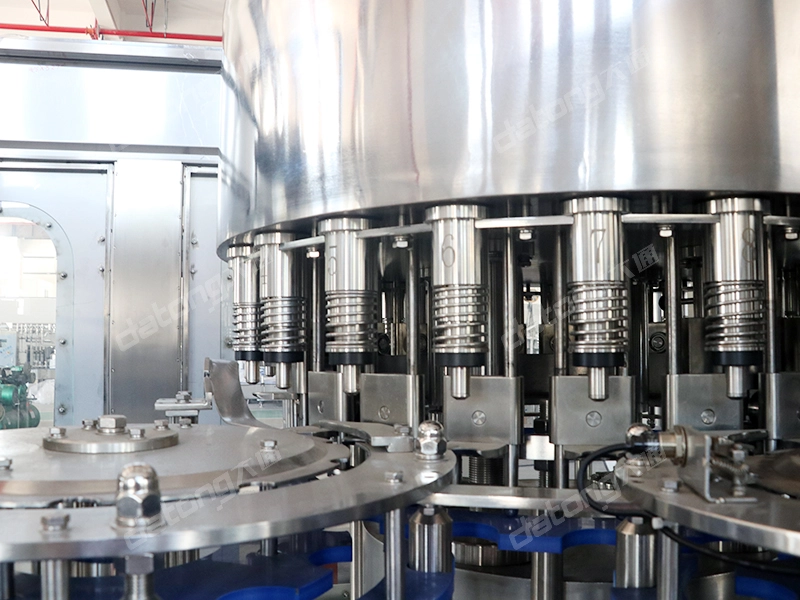

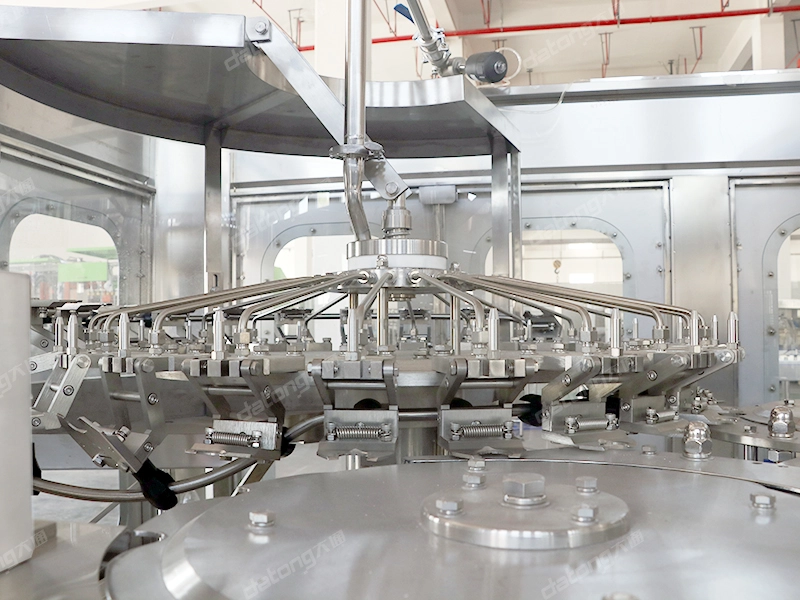

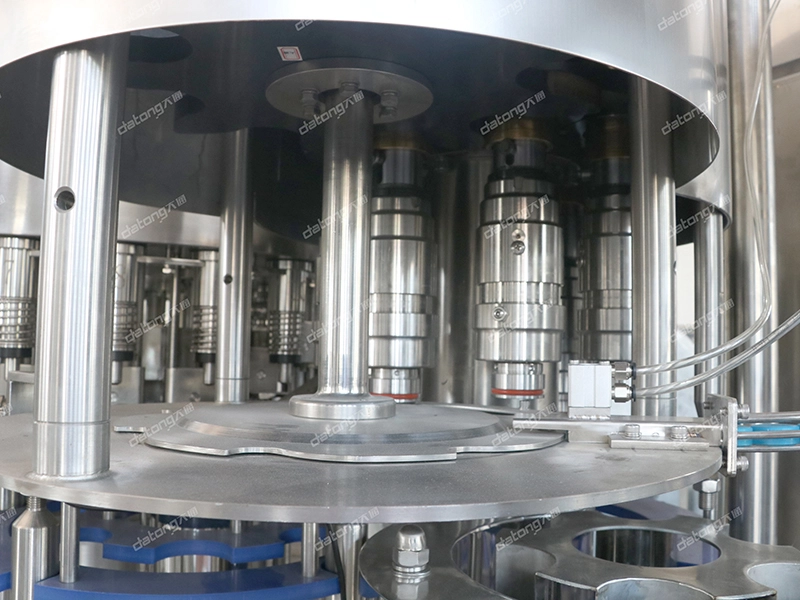

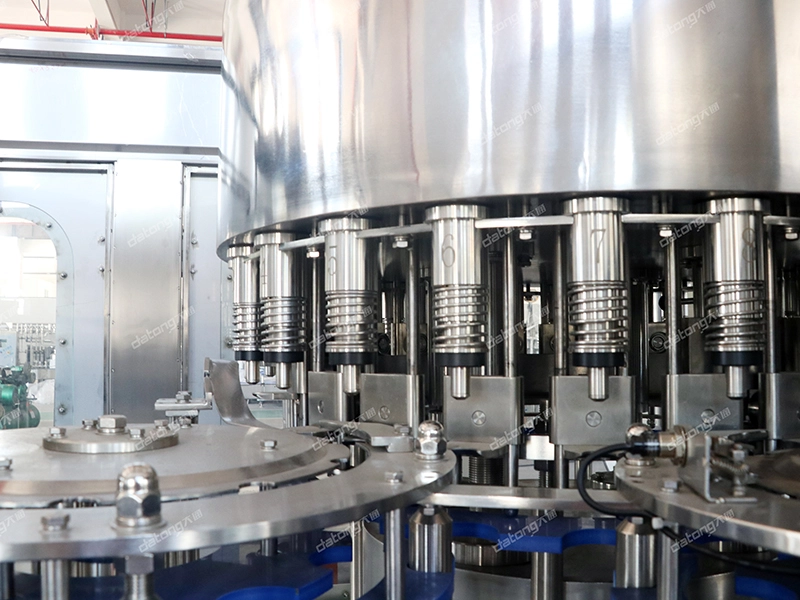

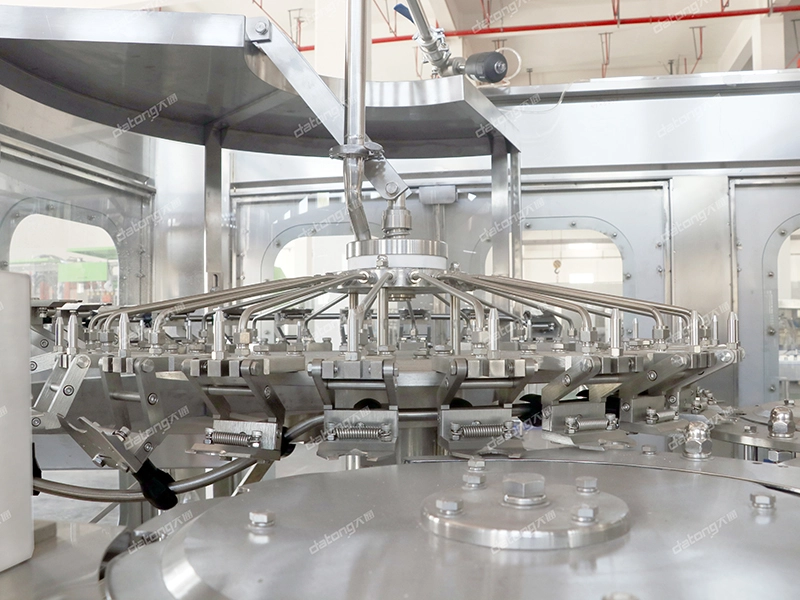

By 3-in-1 monoblock, the bottle goes through washing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier. Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck, avoiding the second contamination. High speed and mass flow filling valve ensures the high filling speed and exact fluid level. parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. the electric system is from international brand and achieves the national food hygienic standard. the bottle-out starwheel is helical structure. while changing over bottle size. It is no need to adjust bottle-out conveyor height.
| Model | CGF12125 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF505012 | CGF606015 | CGF808020 |
| Number of washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-20 |
| Production capacity(600ml) (B/H) |
2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | 35000-40000 |
| suitable bottle specification(mm) | φ=50-110 H=170 volume=330-2250ml | |||||||
| Washing pressure(kg/cm 2 ) | 2-3 | |||||||
| Motor power(kw) | Main motor 2.2kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 5.5kw |
Main motor 7.5kw |
Main motor 11kw |
Main motor 15kw |
Main motor 19kw |
| Overall dimensions (mm) | 2400×1650 ×2500 |
2600×1920 ×2550 |
3100×2300 ×2800 |
3800×2800 ×2900 |
4600×2800 ×2900 |
5450×3300 ×2900 |
6500×4500 ×2900 |
76800×66400 ×2850 |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | 150 |
