Professional manufacturer of water & beverage machine
Suitable for water filling, widely used in the bottles packing on 0.2L-2L small scale bottles.
Capacity：20000BPH
Brand：DATONG-Automatic Filling Machine
Application：Pure water, Mineral water, Spring water

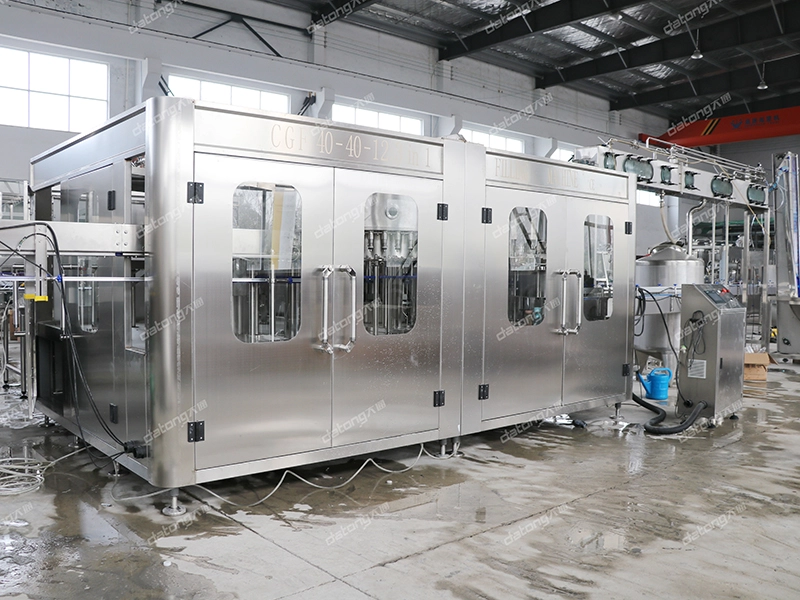

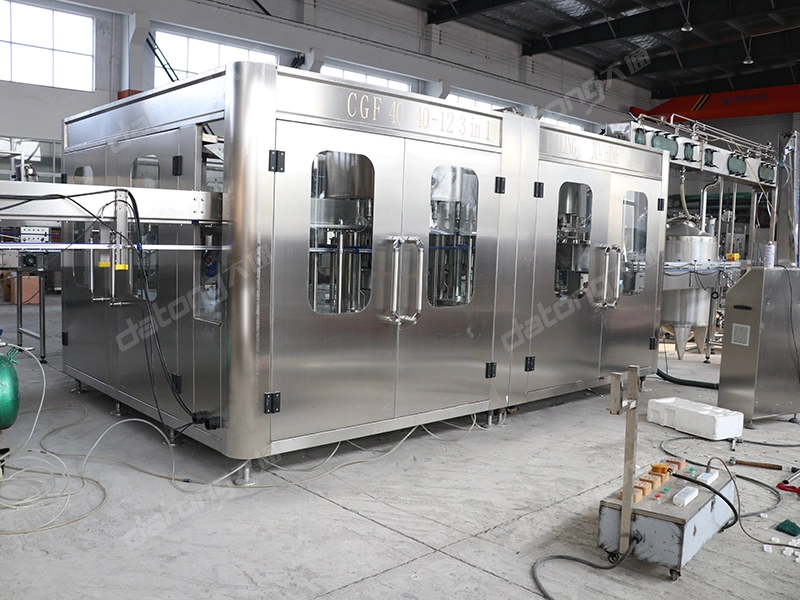

3 IN 1 Washing, Filling, Capping integration machine
1. The mineral water filling machine adpots advanced human-machine interface control. High quality international name brand key components
2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By changing the valves, it also can be used as hot filling machine

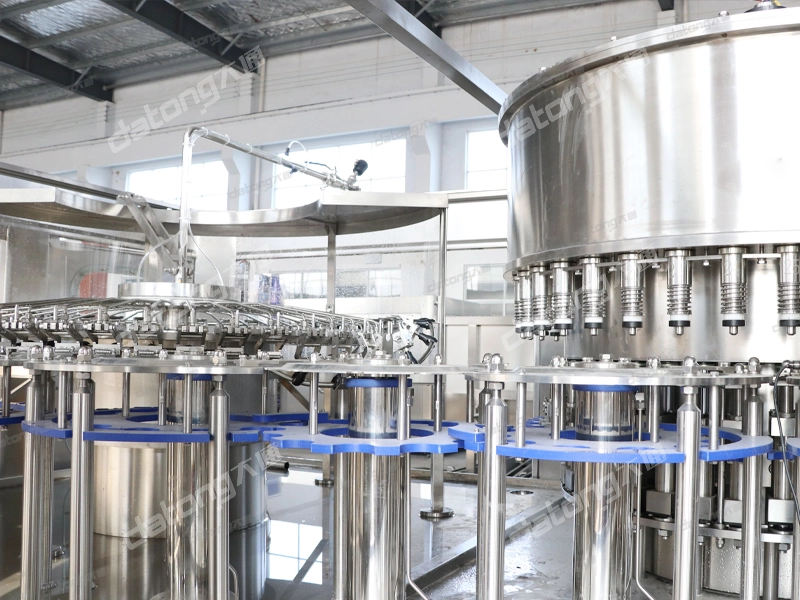

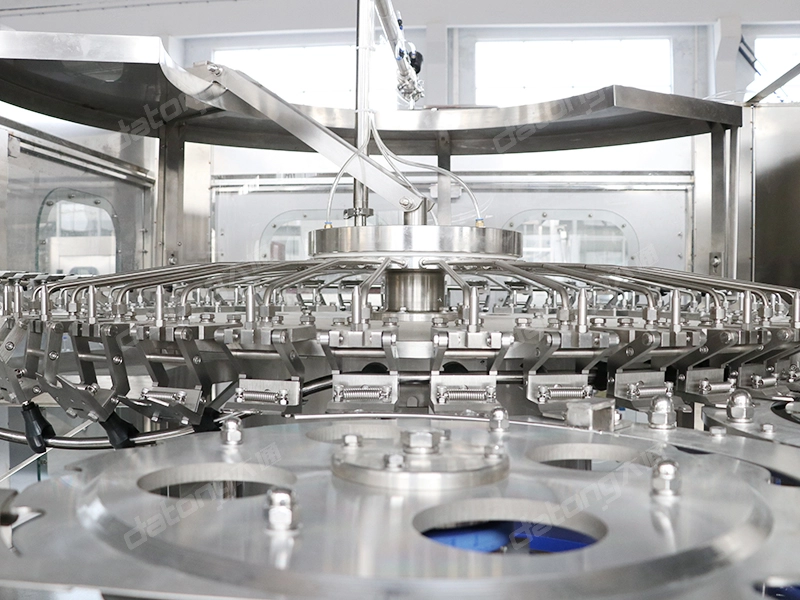

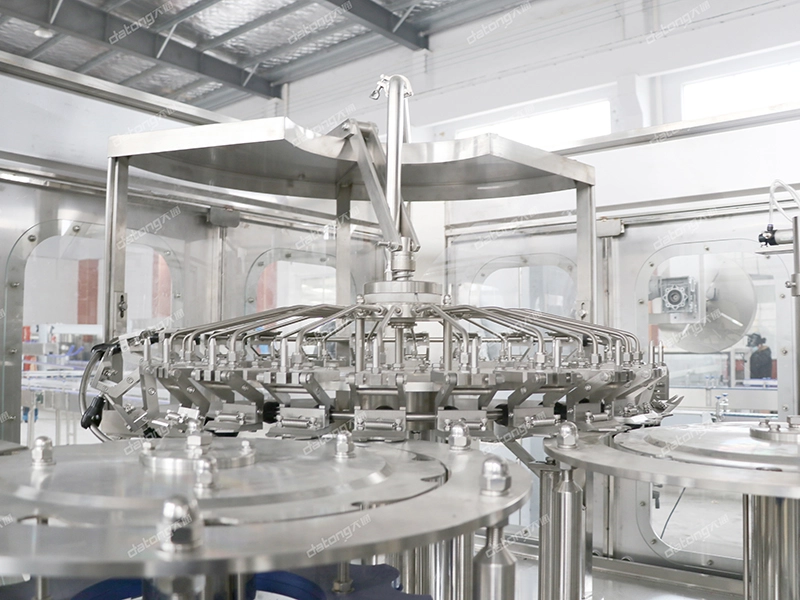

3. Spring type rinsing catcher can wash both inside and outside of the bottle

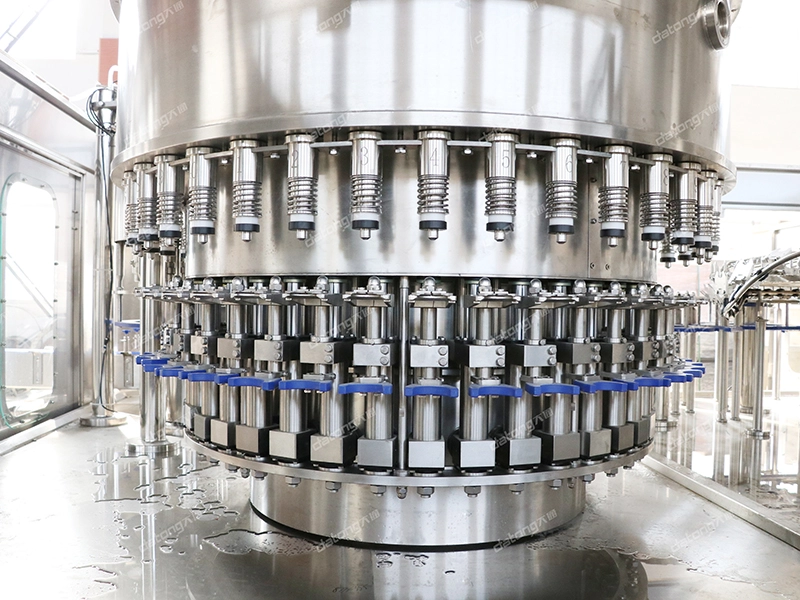

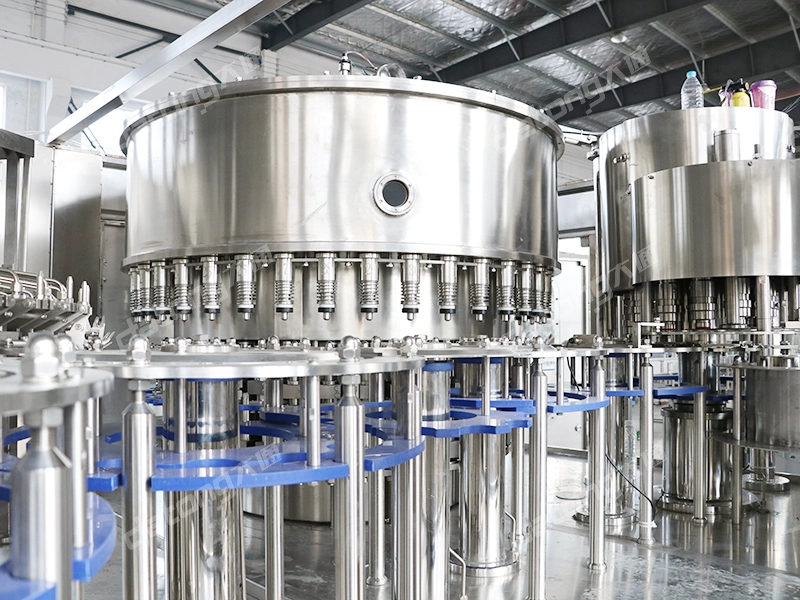

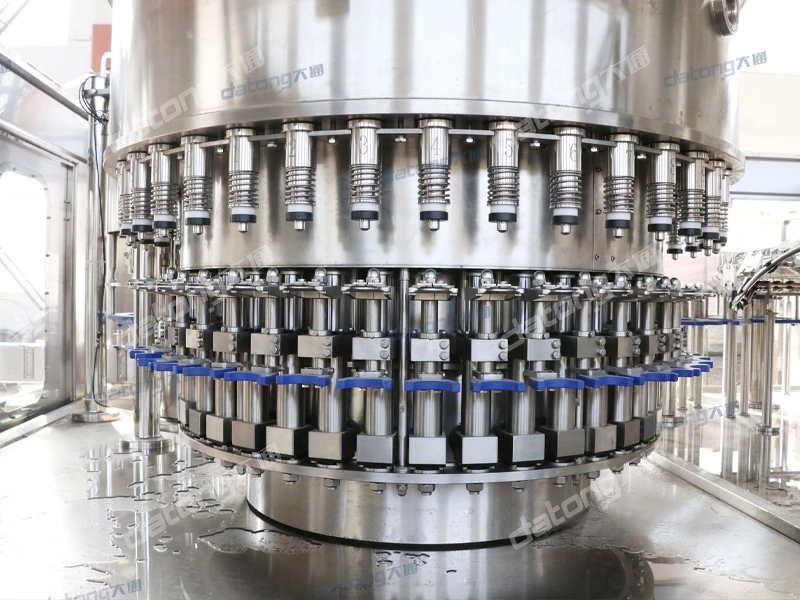

4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water filling

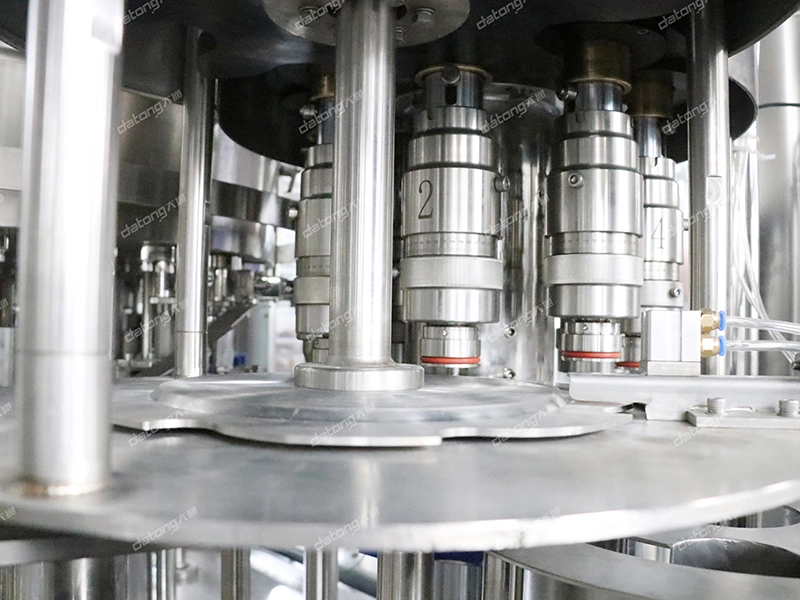

5. Magnetic powered cap device ensures tightness and prevents damage of the caps
6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps thus eliminating uncapped bottle spillage
7. Built-in safeguard mechanism ensures the safety of operator and machine.
8. High efficient air clean filter system ensures high sanitary requirements
9. Low overall machine noise
10. Self-lubricating system imported from America provides continuous smooth operation
| Model | CGF12125 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF505012 | CGF606015 | CGF808020 |
| Number of washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-20 |
| Production capacity(600ml) (B/H) |
2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | 35000-40000 |
| suitable bottle specification(mm) | φ=50-110 H=170 volume=330-2250ml | |||||||
| Washing pressure(kg/cm 2 ) | 2-3 | |||||||
| Motor power(kw) | Main motor 2.2kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 5.5kw |
Main motor 7.5kw |
Main motor 11kw |
Main motor 15kw |
Main motor 19kw |
| Overall dimensions (mm) | 2400×1650 ×2500 |
2600×1920 ×2550 |
3100×2300 ×2800 |
3800×2800 ×2900 |
4600×2800 ×2900 |
5450×3300 ×2900 |
6500×4500 ×2900 |
76800×66400 ×2850 |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | 150 |
