Professional manufacturer of water & beverage machine
Pure water,mineral water,spring water and other bottled water etc.
DATONG can provide whole solutions for water,let us crate value for you.

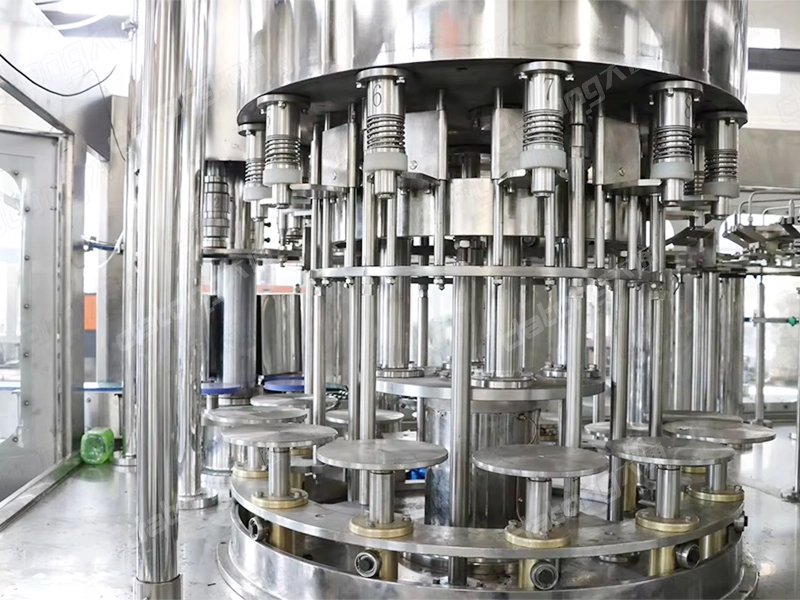

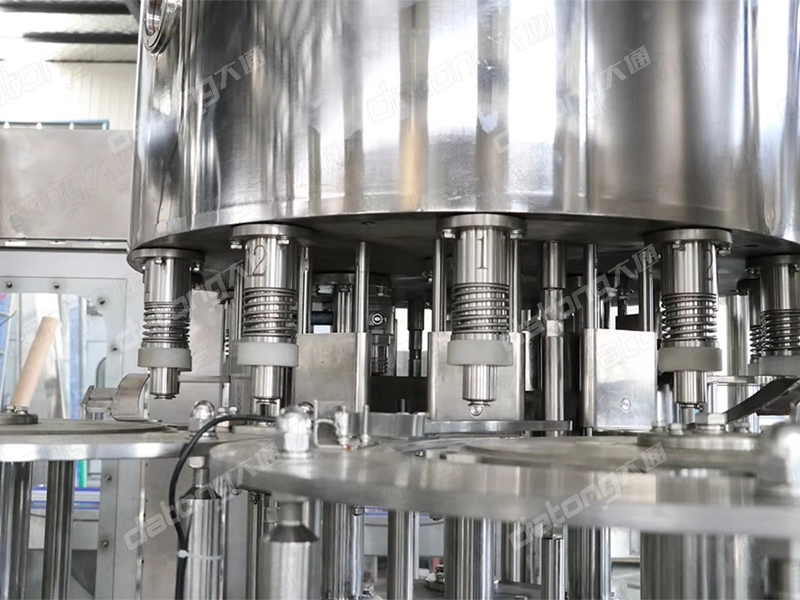

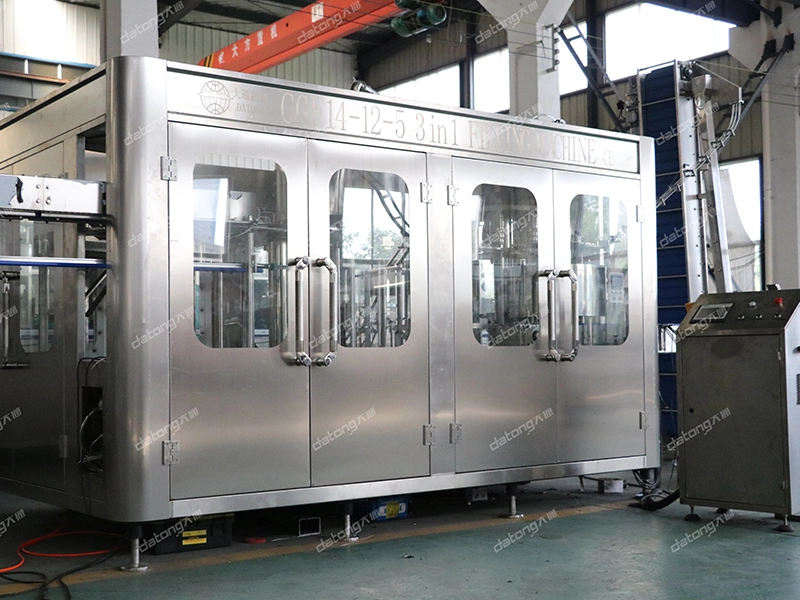

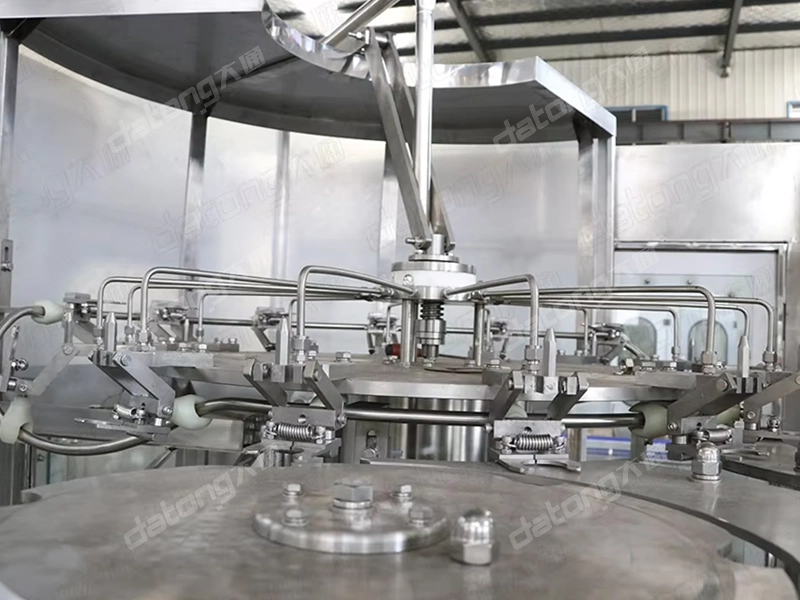

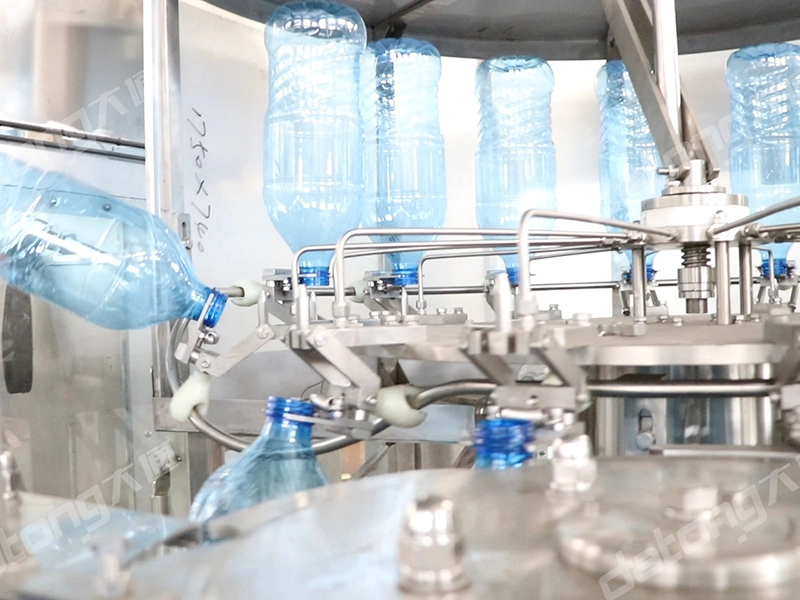

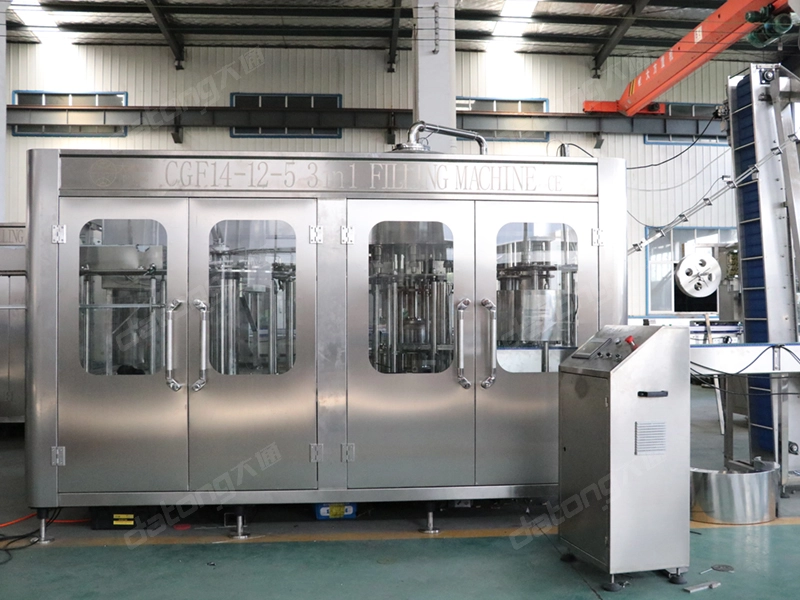

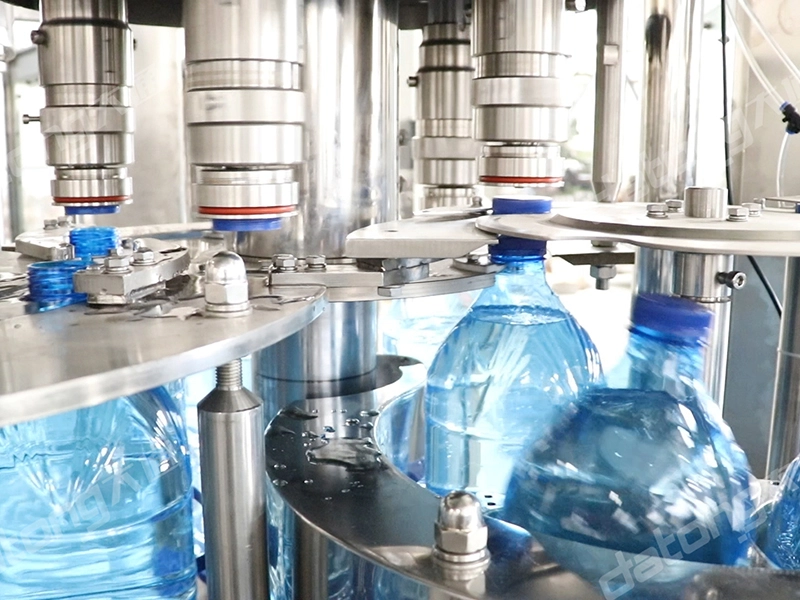

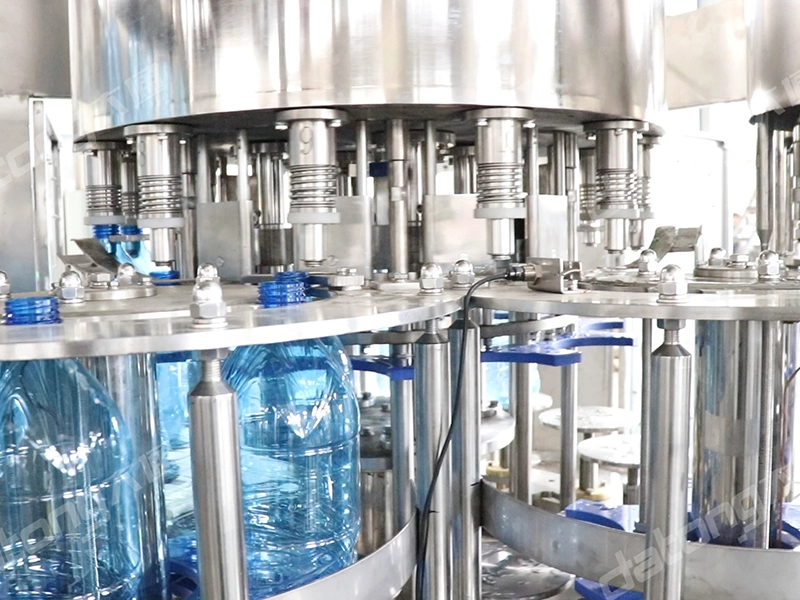

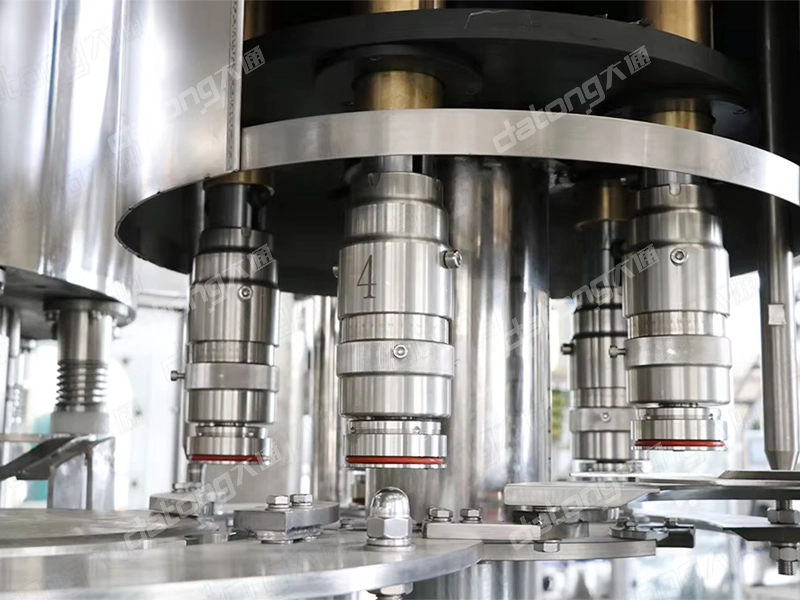

By 3-in-1 monoblock ,the bottle goes through washing,filling and capping with little abrasion,and the transferring is stable,bottle changing is easier. Specially designed stainless steel bottle gripper dose not contact the thread parts of the bottle neck,avoiding the second contamination. High speed and mass flow filling valve ensures the high filling speed and exact fluid level.parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.the electric system is from international brand and achieves the national food hygienic standard.the bottle-out starwheel is helical structure.while changing over bottle size. It is no need to adjust bottle-out conveyor height.
| Model | CGF12125 | CGF18186 | CGF24248 | CGF323210 | CGF404012 | CGF505012 | CGF606015 | CGF808020 |
|---|---|---|---|---|---|---|---|---|
| Number of washing, filling and capping heads | 12-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 | 60-60-15 | 80-80-20 |
| Production capacity(600ml)(B/H) | 2000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 | 20000-24000 | 25000-30000 | CGF808020 |
| suitable bottle specification(mm) | φ=50-110 H=170 volume=330-2250ml | |||||||
| Washing pressure(kg/cm 2 ) | 2-3 | |||||||
| Motor power(kw) | Main motor 2.2kw | Main motor 2.2kw | Main motor 3kw | Main motor 5.5kw | Main motor 7.5kw | Main motor 11kw | Main motor 15kw | Main motor 19kw |
| Overall dimensions (mm) | 2400×1650×2500 | 2600×1920×2550 | 3100×2300×2800 | 3800×2800×2900 | 4600×2800×2900 | 5450×3300×2900 | 6500×4500×2900 | 7680×66400×2850 |
| Weight (kg) | 2500 | 3500 | 4500 | 6500 | 8500 | 9800 | 12800 | 150 |
