Professional manufacturer of water & beverage machine
Pure water,mineral water,spring water and other bottled water etc.
DATONG can provide whole solutions for water,let us crate value for you.

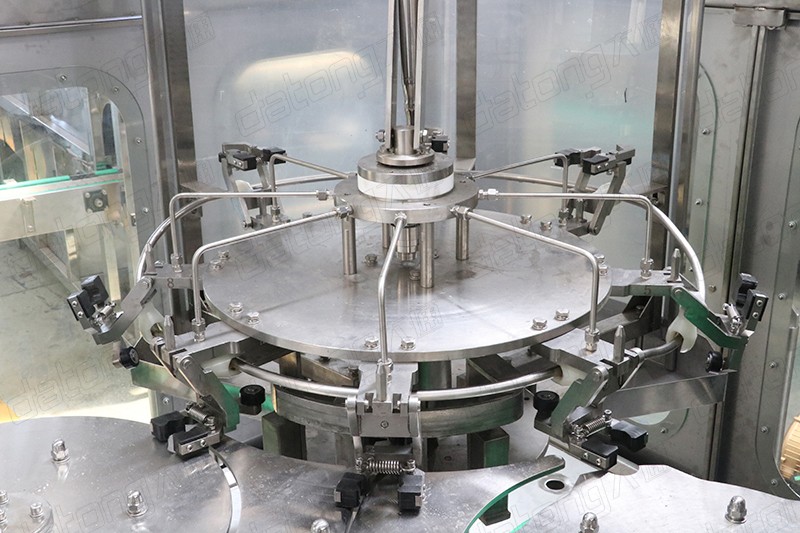

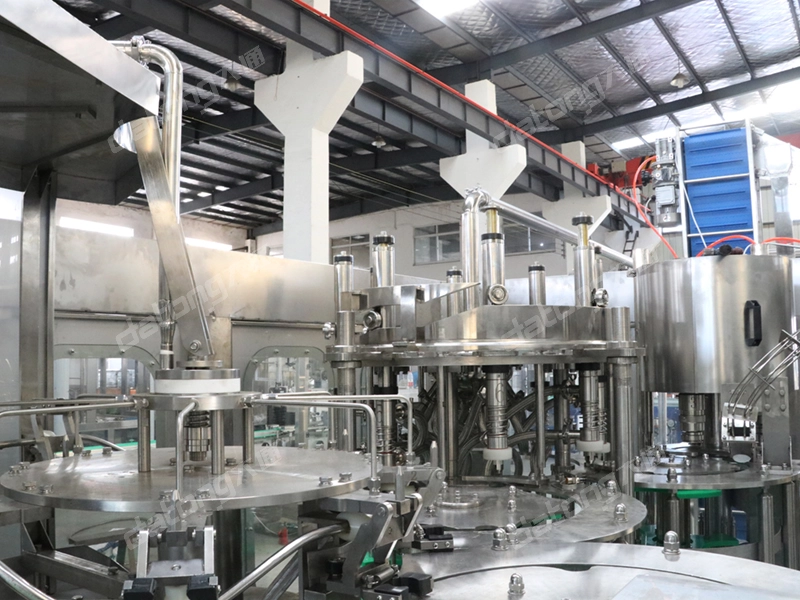

The rotary wheel is a fully SUS304 stainless steel welded structure.
The rinse is driven by driving system positioned inside machine frame via gear transmission.

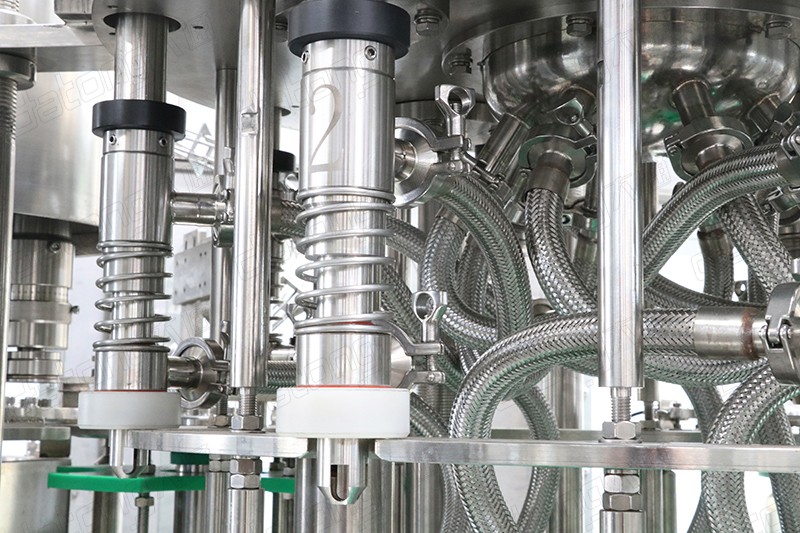

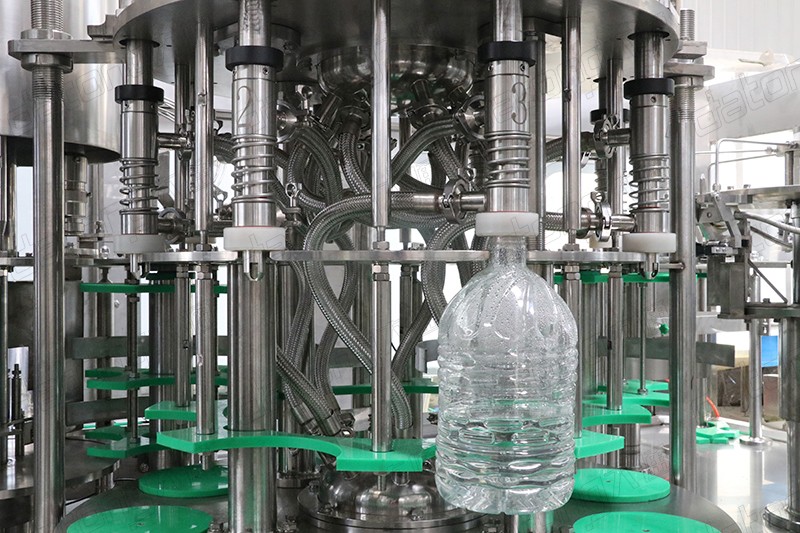

The filler is designed and manufactured with application of Italy technology,providing hardware guarantee for securing product quality and reducing loss.

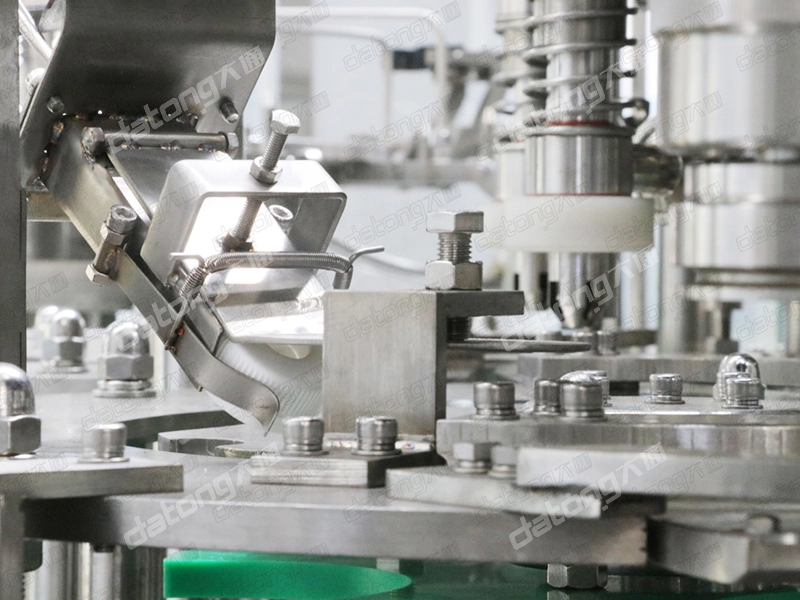

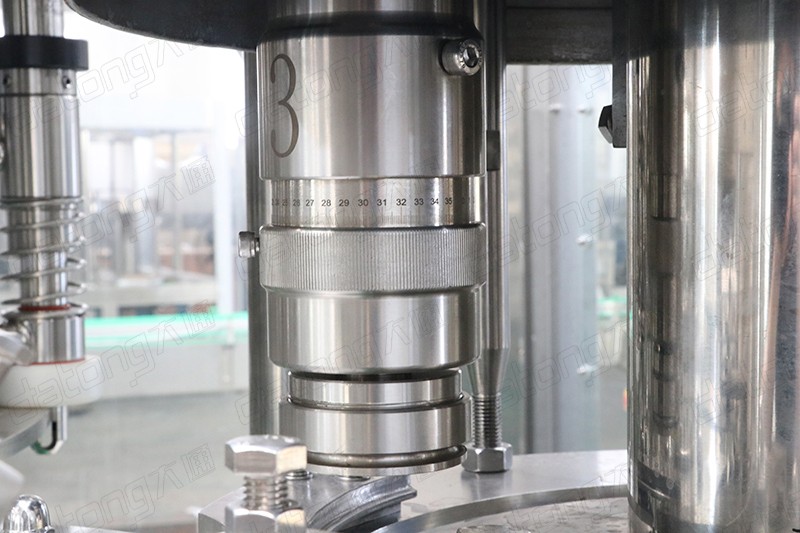

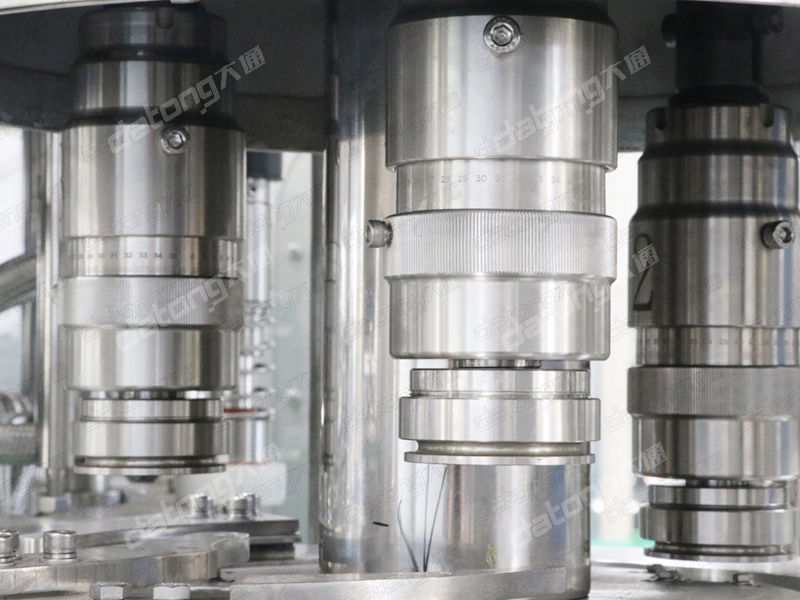

Highly effective acentric way for cap sorting to reduce the abrasion.
It has the check-up device to control the cover lift..
| Model | CGF14-12-5 | CGF16-16-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 | CGF40-40-12 | CGF50-50-15 | CGF60-60-15 |
| Production capacity（500ml） | 2000-3500 | 3500-5000 | 5000-7000 | 7000-12000 | 12000-15000 | 15000-20000 | 20000-24000 | 24000-30000 |
| Suitable bottle shape | circular or square | |||||||
| Bottle diameter（mm） | Φ50-Φ95 | |||||||
| Bottle height（mm） | 150-310 | |||||||
| Washing medium | aseptic water | |||||||
| Total power（kw） | 3 | 3.5 | 4 | 5.5 | 7.5 | 11 | 15 | 20 |
| Weight（kg） | 2200 | 2800 | 3000 | 4500 | 6000 | 9000 | 15000 | 18000 |
| Overall dimensions（mm） | 2050*1550*2200 | 2400*1750*2200 | 2550*1850*2200 | 3000*2150*2200 | 4200*2700*2400 | 4700*3200*2400 | 6500*3350*2400 | 7200*3650*2600 |
