Professional manufacturer of water & beverage machine
| Can diameter | φ52.5-99mm |
|---|---|
| Dimension | 2650*2200*2200mm |
| Rated power | 6.75kw |
| Capacity of production | 5000-18000 cph |

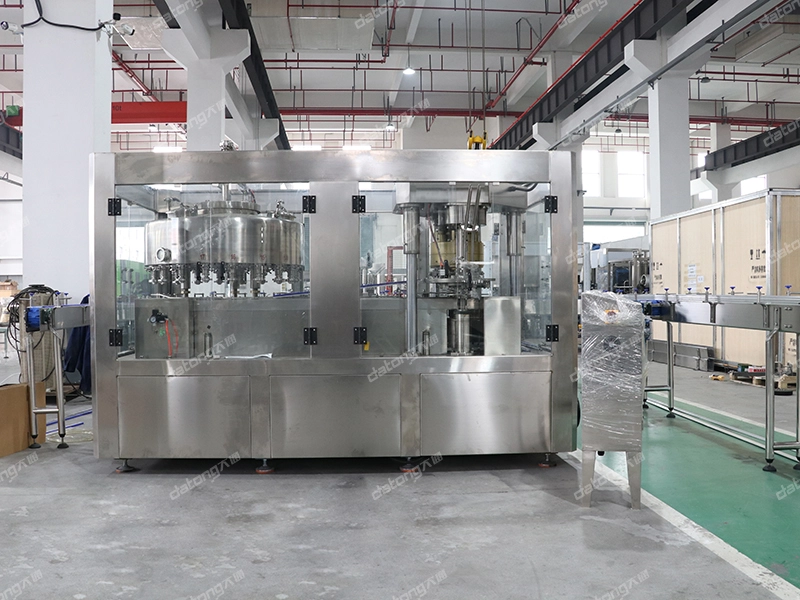

DATONG can provide whole solutions for can filling machine.

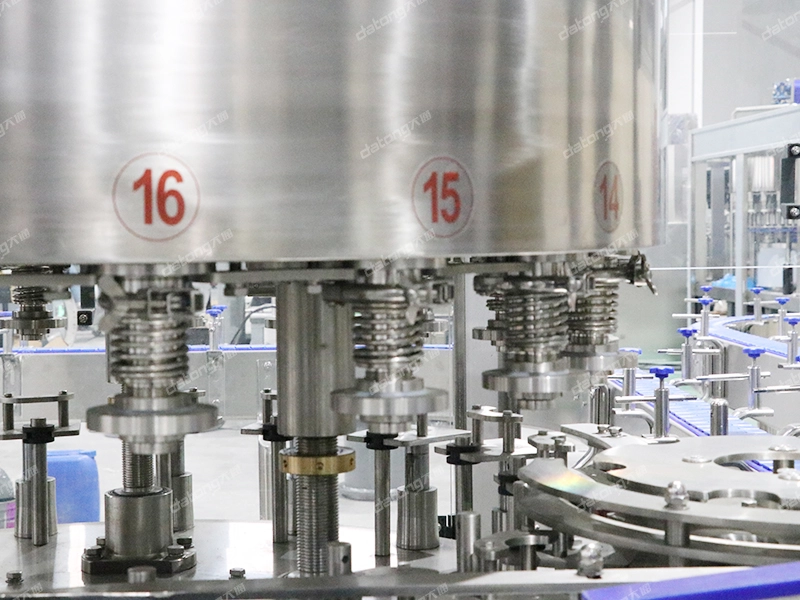

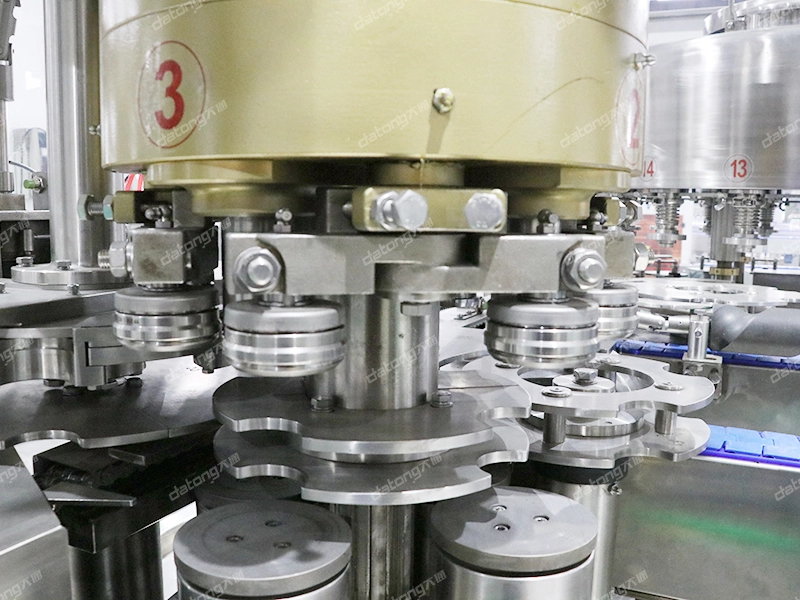

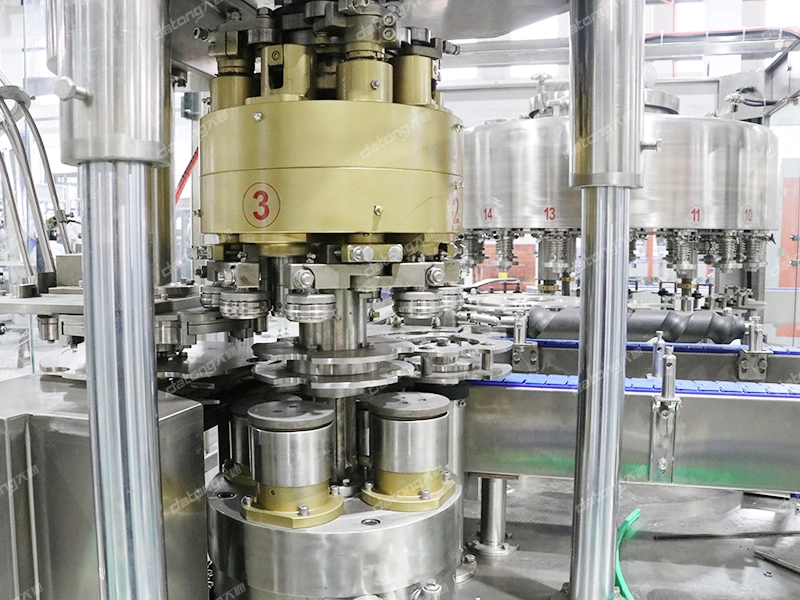

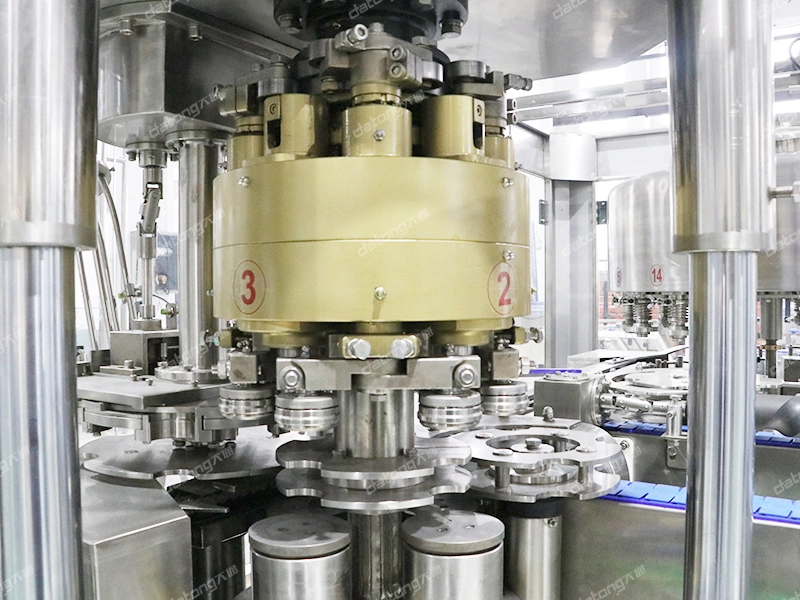

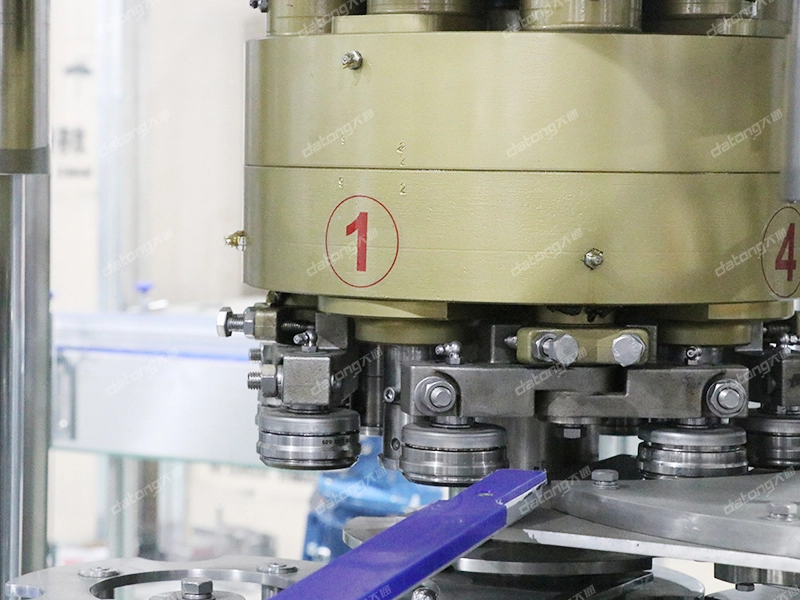

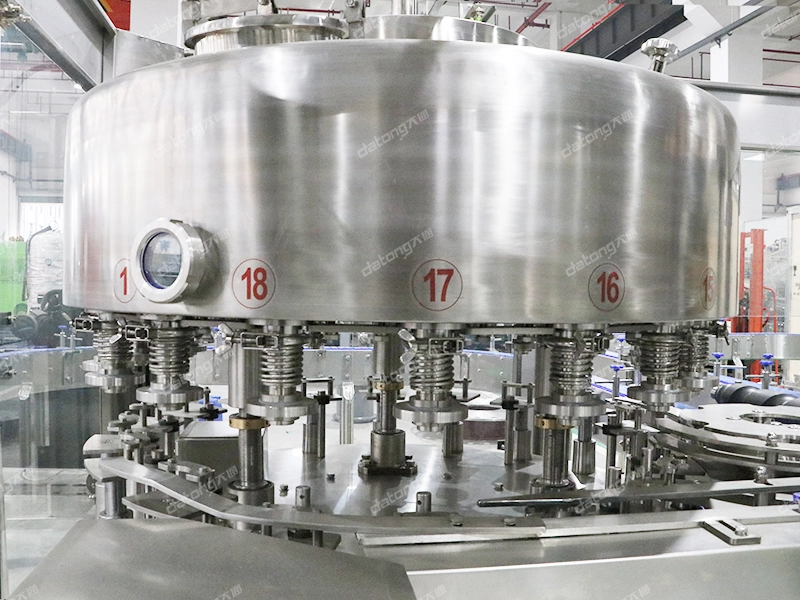

The machine is a device developed exclusively by DATONG MACHINE on the basis of digesting and absorbing domestic and international (still) pop can filling and seaming machines (sealing machines) . It adopts the normal pressure filling principle . After it passes through the dialing wheel , the empty can will enter into the lift can supporting disc , and the filling valve is aligned with the empty can , which will rise for sealing . Meanwhile , the valve port of the filling valve is automatically opened . When the filling liquid level blocks the gas return pipe mouth , the filling stops . The filled can will be conveyed to the sealing machine head by the hook chain . The cap will be sent onto the can mouth by the cap rises , the pressing head presses the can mouth , the sealing wheel carries out pre-sealing and then real sealing . After it is sealed , the can is pushed out by the beating head of the cap beating mechanism and then enters into the can discharging procedure .
suitable for aluminun and PET can
1. This equipment is used for filling carbonated beverage in cans , such as beer, cola, energy drinks and soda water.
2. This equipment can be used for different material of cans, such as plastic, iron, aluminum and so on ,and the different size of cans is allowed.We can design the equipment according to your requirements
3. It is applicable for equal pressure filler and capper of carbonated drinks in beer and drink industry.
4. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit.
5. Filling and sealing is the overall designed, power system by filling sealing system to Ensure that both the absolute synchronization and coordination.
6. It adopts the advanced machine, electrical equipment, and Pneumatic control technology.
7. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss.
8. It can equip long-distance control system according to the Customers request.
9. It is the preferred equipment for the medium beer and beverage plant.
|
Model
|
12-1
|
12-4
|
18-4
|
20-6
|
|
Capacity
|
1000-2000CPH
|
3000CPH
|
6000CPH
|
10000CPH
|
