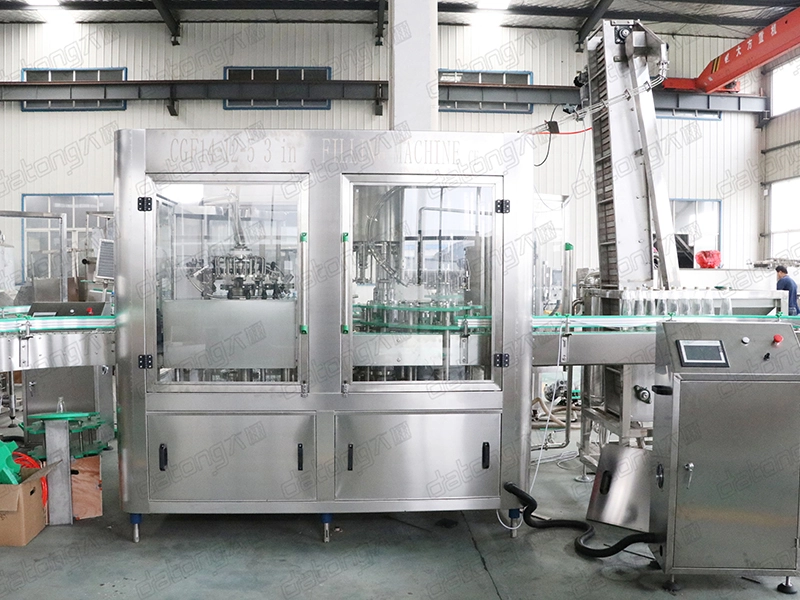

3000BPH CGF14-12-5 Glass Water Filling Machine

Advantages of our juice drink filling machine. 1. Full filling to avoid the liquid level from sinking after the bottle cooling down, and to decrease the dissolved oxygen to the utmost extent. 2. Reasonable structured storage hopper and material supply system make the material in constant flow speed, constant pressure without frothing. Usually high position tank is adopted. 3. The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP. 4. Sanitary filling head system is of umbrella structure, high filling speed. 5. Perfect filling temperature control system. 6. Reflux tank system has the function of supplying the material automatically. 7. Perfect CIP system.

Inquire

Product Description

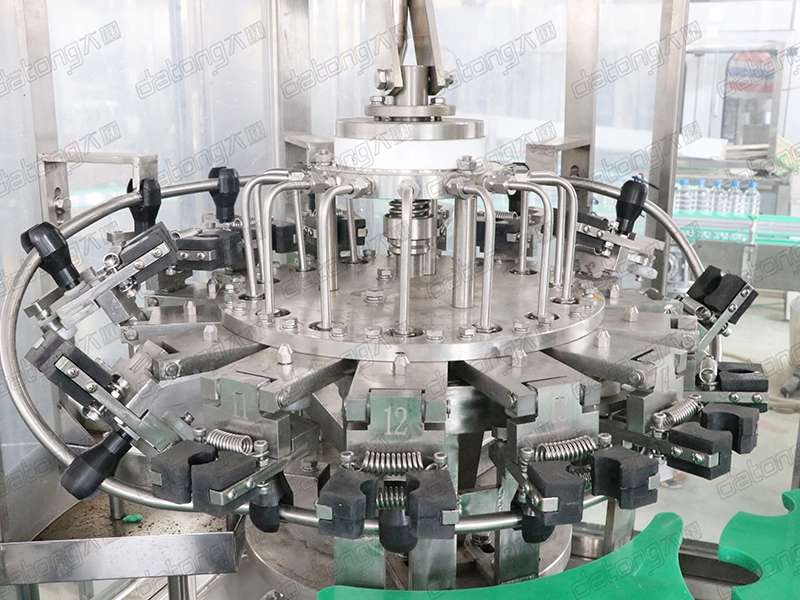

Washing part

stainsteel tube, bottle washing clamp isometric design.
Specially designed stainless steel bottle gripper does not contact the thread parts of the bottle neck,avoiding the second
contamination.

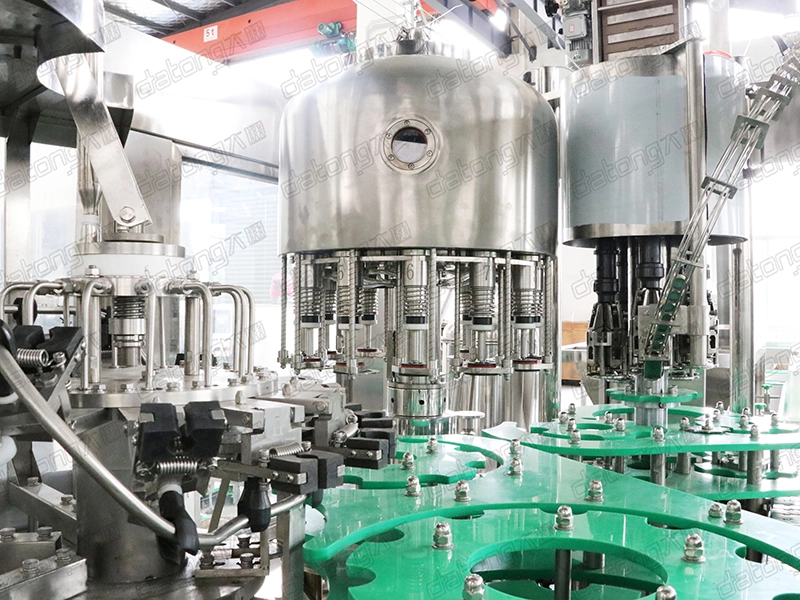

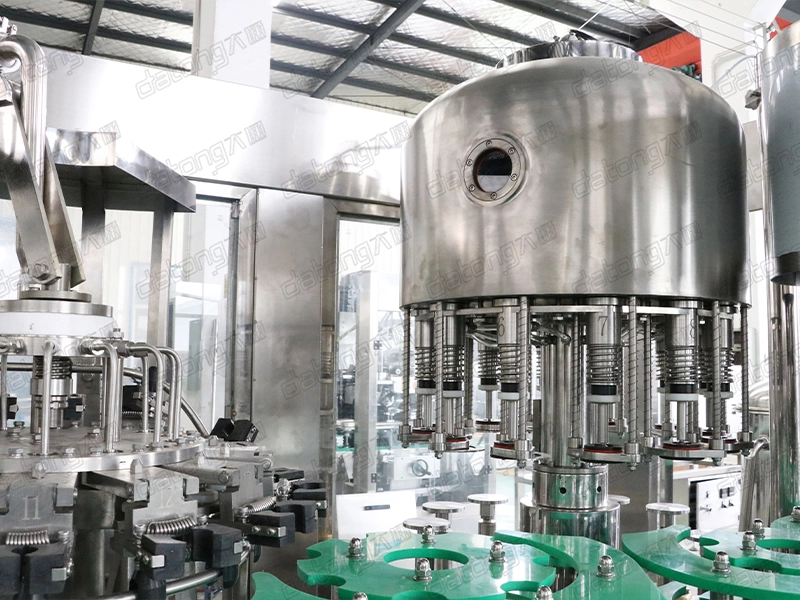

Filling part

High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic.

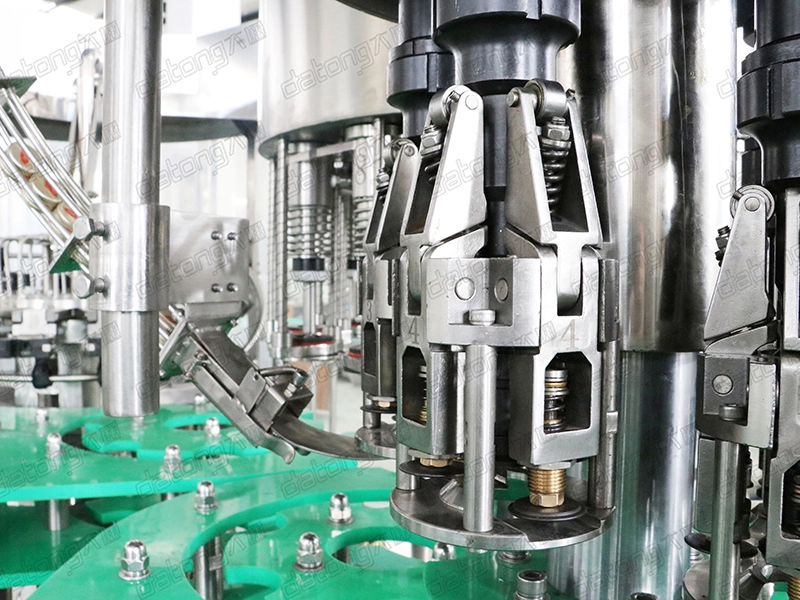

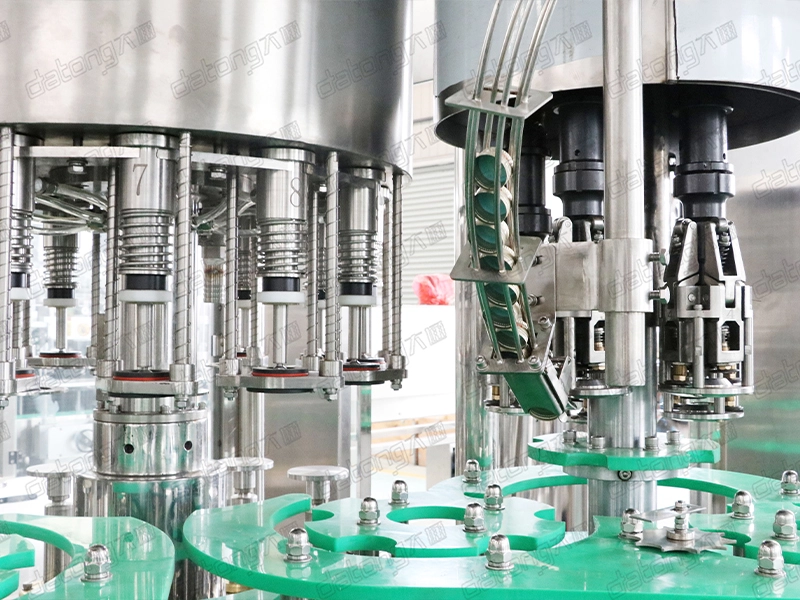

Capping part

capping head have itself scale. Easier adjust and count.

Video

Specifications

Mode	CGF14-12-5	CGF16-16-6	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12	CGF50-50-15	CGF60-60-15
Production capacity(B/H)	2000-3500	3500-5000	5000-7000	7000-12000	12000-15000	15000-20000	20000-24000	24000-30000
Suitable bottle shape	Circular or Square
Bottle diameter(mm)	Φ50-Φ95
Bottle height(mm)	150-310
Washing medium	Aseptic Water
Total power (kw)	2	3.5	4	5.5	7.5	11	15	20
Weight (kg)	2200	2800	3500	4500	6000	9000	15000	18000
Overall dimensions(mm)	205015502200	240017502200	255018502200	300021502200	420027002400	470032002400	650033502400	720036502600

FAQ

3000BPH CGF14-12-5 Glass Water Filling Machine

We provide turnkey project for customers, including pre-sale and after-sale service; complete production line equipment supply; bottle design; layout programs provide; or provide auxiliary materials purchasing agent supplier information; equipment overseas installation and commissioning; operator training; etc

3000BPH CGF14-12-5 Glass Water Filling Machine

2 years warranty after receipt check upon delivery.And we will comprehensively provide you all kinds of technical support services in after-sale !

3000BPH CGF14-12-5 Glass Water Filling Machine

Our factory is located in Zhaxi economic development zone,Leyu town,zhangjiagang city,jiangsu province,china. about 2 hours away from podong Airport .we will pick you up in the nearest station. All our clients, from home or abroad, are warmly welcome to visit us!

3000BPH CGF14-12-5 Glass Water Filling Machine

We are a factory, professional water treatment equipment manufacturer and small bottle water production line with about 16 years experience. Factory covers an area of 6000 square. There have been more than 40 countries use our products.

3000BPH CGF14-12-5 Glass Water Filling Machine

bottle mineral water filling machine with capacity from 2000BPH to 36000BPH. This kind of packing features light, good-tenacity, strong-intensity and hard-breakage, in addition, PET bottle can be made into different specs and shapes; For the consumer, they can take easily and conveniently without exploding.
